Voice Light Control System
Empers Voice Light control System is an advanced wireless compatible system. You can easily use the voice to control the lights even home appliances.
Say what you want to turn on
With Speech Synthesis library we don’t need to record any voice in advance, also different languages are available as required. You can place it anywhere you like with a WiFi network, and use it to turn on appliances.
Benefits:
- WiFi connection
- RJ-45 connector
- Flexible expansion, easy installation
- Voice control to turn on/off lights, brightness adjustment
- Remote control to turn on/off, timing, dimming lights with smart phone
- No need to change the lamp circuit
- Uniform light, high efficiency, up to 3200 lumens
- 110~220V full voltage
- Four brightness switching
- Design and manufacture in Taiwan
Download

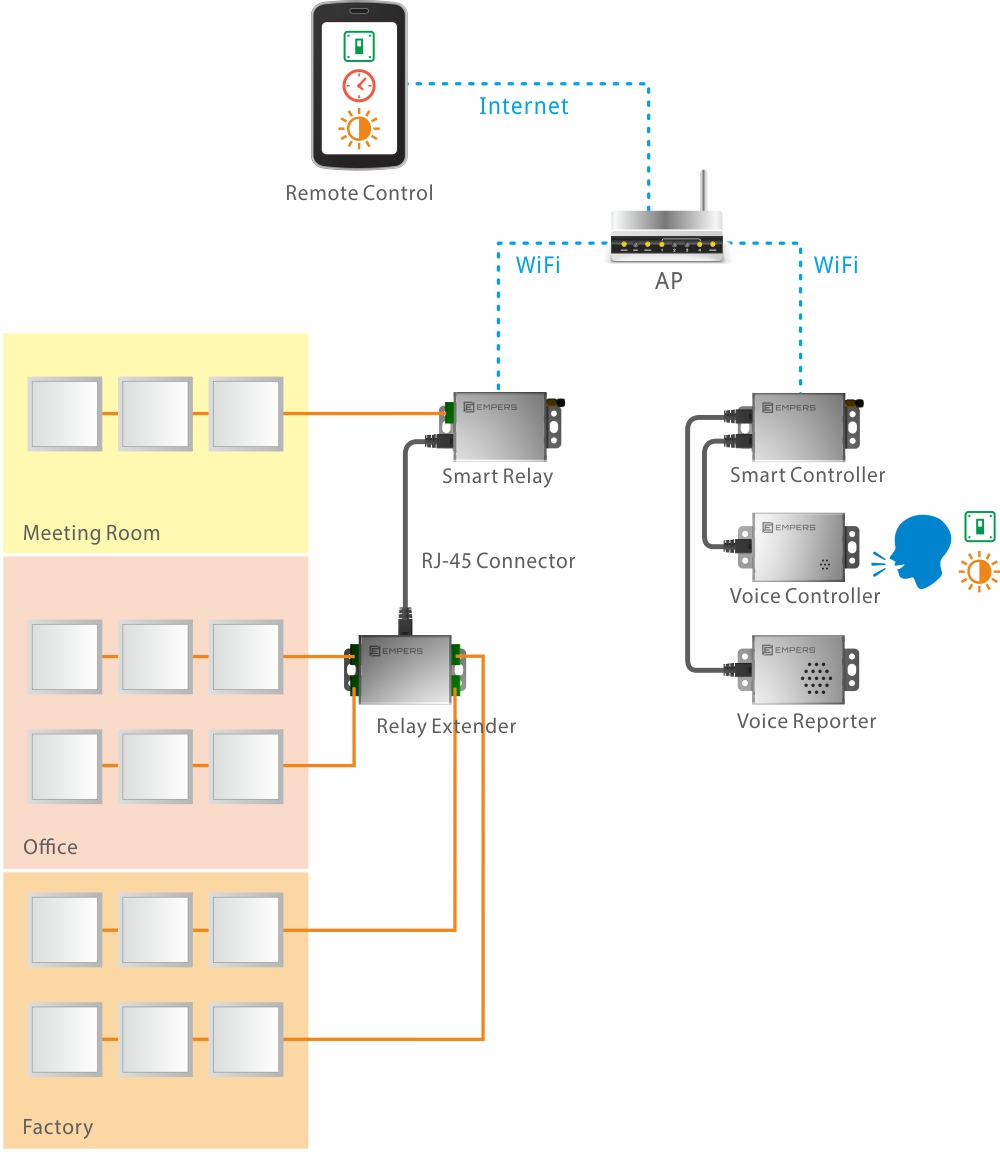

Application
| Smart Relay (WD-120) | |
|---|---|
| CPU | Quad-core Cortex-A7 |
| GPU | Mali400MP2 |
| Memory | 512MB DDR3 SDRAM |
| Storage | TF card (Max. 64GB) |
| WiFi | IEEE 802.11 b/g/n, external antenna |
| Power | DC 5V, 2A |
| Connector | RJ-45 |
| Relay Channel | 1 |
| Relay Extender (WD-1204) | |
| Connector | RJ-45 |
| Channel | 4 |
| Voltage | AC 240V / DC 24V |
| Contact Rating | 10A 120V AC, 7A 240V AC |
| Isolation Voltage | 5 KV rms |
| Smart Controller (WD-130) | |
| CPU | Quad-core Cortex-A7 |
| GPU | Mali400MP2 |
| Memory | 512MB DDR3 SDRAM |
| Storage | TF card (Max. 64GB) |
| WiFi | IEEE 802.11 b/g/n, external antenna |
| Power | DC 5V, 2A |
| Connector | RJ-45 x 2 |
| Voice Controller (RJ-1301) / Voice Reporter (RJ-1302) |
|
| Support Language | English / Chinese |
| Coding | GB2312, GBK, BIG5, UNICODE |
| Maxinum Text | 4K byte |
| Power | DC 5V, 2A |
| Connector | RJ-45 |
| LED Panel Light (XT12) | |
| Voltage | 100~240V |
| Light Point | Straight down |
| Power Consumption | 30W |
| Luminous Efficiency | 110 lm/W |
| Life | 100,000 hrs |
| Size | 60x60x5.5cm, 3kg |
Ordering Number
WD-120
WD-1204
WD-130
RJ-1301
RJ-1302
XT12
