ZD-130 DC Relay Controller
Empers DC Relay (ZD-130) is a smart choice of ON/OFF control of relay-based devices. It can be mounted in a single or multi-gang electrical box.The relay can be isolated for dry contact applications or powered to switch live loads. This device can operate loads in DC power.
Easy to control most devices with relay control
ZD-130 can also be used as a wireless repeater. It can ensure that another device in the network receives the commands intended. It is useful when there is a device out of radio range.
Benefits:
- Enables Z-Wave control of Commercial Lighting, In-Ceiling Lighting/fans, Dry-Contact Relays, Pool Pumps, Water Heaters and appliances
- Controlled through any Z-Wave controller
- DC power support
- Very compact and easy to install
- Industrial design
Download

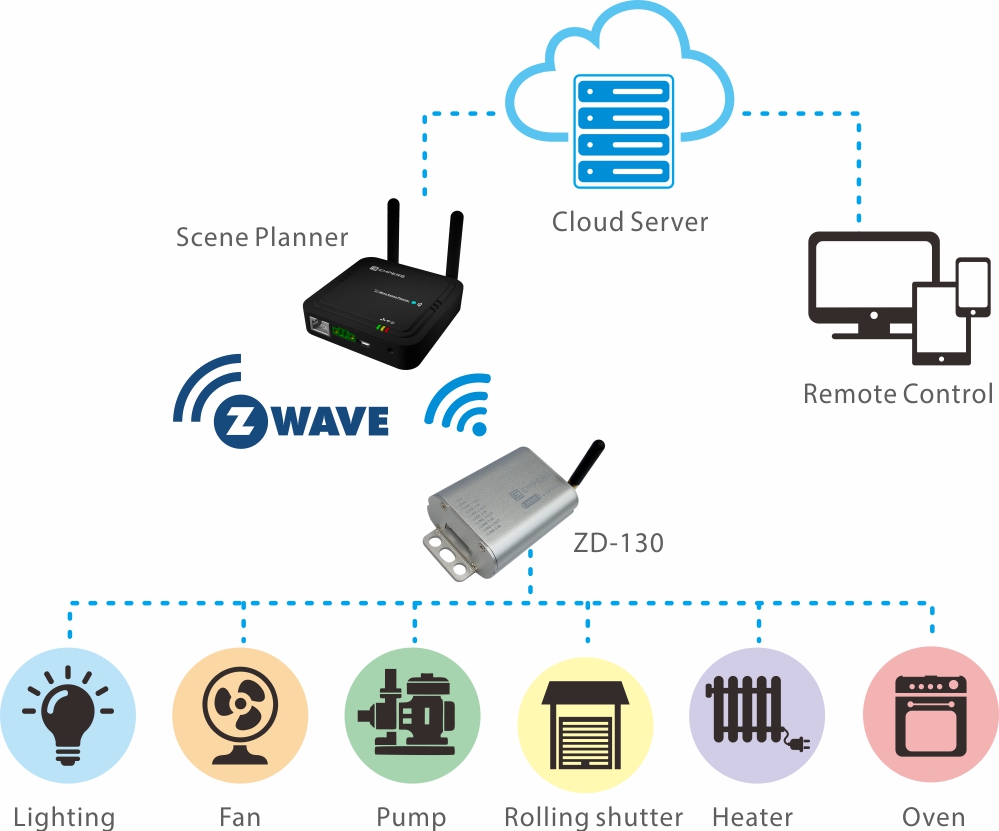

Application
| Z-Wave | |
|---|---|
| RF Frequency | 908.42 MHZ (US), 868.42 MHz(EU), 922.5 MHz (JP) |
| Range | Up to 50m (outdoors) and 30m (indoors) |
| Appearance | |
| Dimension | 94x56x27mm(LxWxH), 220 Gram |
| Housing Material | Aluminum |
| Color | Silver |
| Power Requirements | |
| Voltage | 110 – 240V AC or 24 – 60V DC |
| Contact | High rating 20A/14VDC; Motor load 5A/14VDC; |
| Maximum carry current up to 35A |
Ordering Number
ZD-130-J
ZD-130-U
ZD-130-E
